Sale-19%

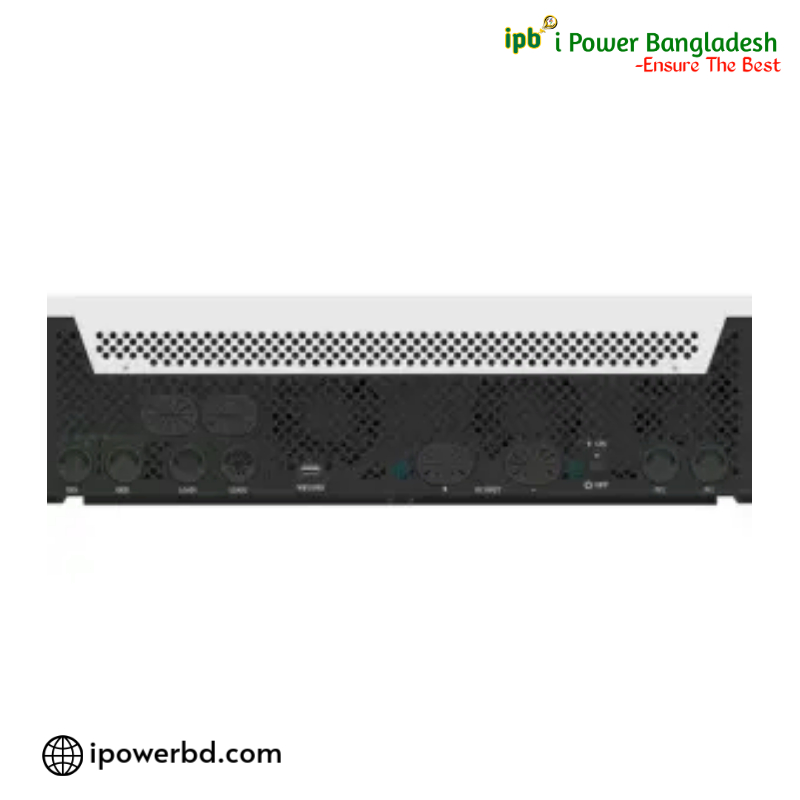

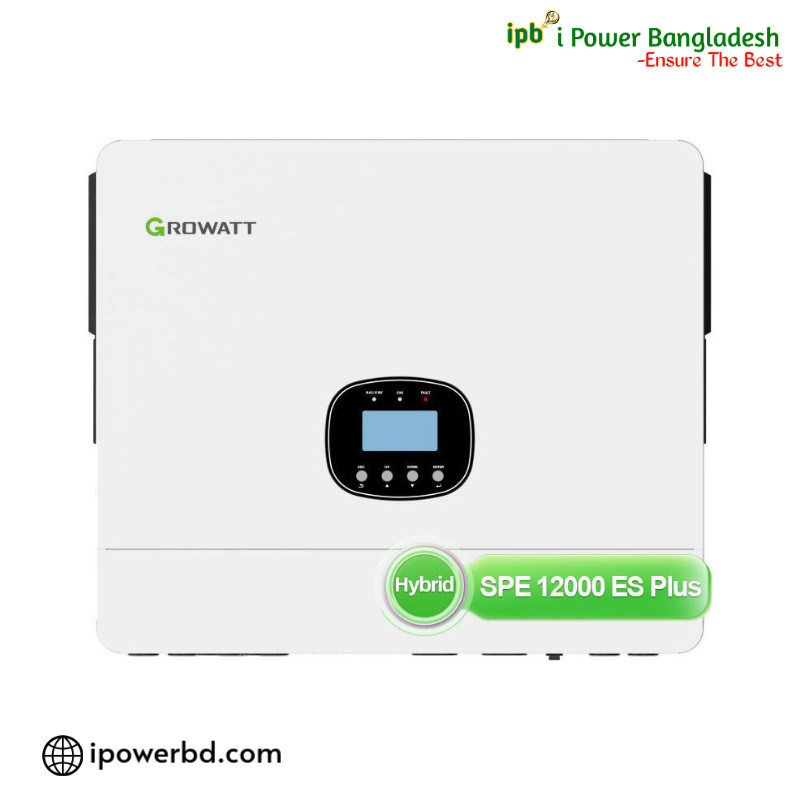

Growatt 12KW Hybrid Solar Inverter

৳160,000.00 ৳130,000.00

For more live images and videos, Contact us now

Share on WhatsApp

01996677558

For Update Price Call: +8801996-677558

Home Delivery Charges

(Inside Dhaka):First 1KG 70Taka, next Per KG 30Taka

(Outside Dhaka):First 1KG 130 taka, next Per KG 30Taka

Authenticity Guaranteed

1-5 Year Warranty

Brand New

7 Days Exchange Policy

Description

Specifications

Datasheet	SPE 8000 ES	SPE 10000 ES	SPE 12000 ES
Input data (DC)
Max. recommended PV power(for module STC)	10000W	12500W	15000W
Max. DC voltage	550V
Start voltage	120V
MPP voltage range	60V-480V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	27A
Output data (AC)
AC nominal power	8000W	10000W	12000W
Max. AC apparent power	8000VA	10000VA	12000VA
Nominal AC voltage	230V
AC grid frequency	50/60Hz
Output current	34.8A	43.5A	52.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	< 5%
Max. conversion efficiency (PV/AC)	96.5%
European efficiency @ vnominal (PV/AC)	95.5%
Battery data (DC)
Nominal DC voltage	48V
Max charging and discharging current	190A/200A	220A/240A	250A/280A
Type of battery	Lithium/Lead-acid
Backup power (AC)
AC nominal output power	8000W	10000W	12000W
Nominal AC output voltage	230V
Nominal AC output frequency	50/60Hz
Switch time	<20ms@Single, <30ms@Parallel
Efficiency
Peak. efficiency	96.5%
European efficiency	95.5%
General data
Dimensions (W / H / D)	550/465/150mm
Weight	21.5kg
Operating temperature range	-10°C … +50°C
Noise emission (typical)	<75dB
Self-consumption	< 75W
Topology	Tranformerless
Cooling	DC fan
Protection degree	IP20
Relative humidity	5%~95% non-condensing
Altitude	<2000m
Communication	WiFi/4G
