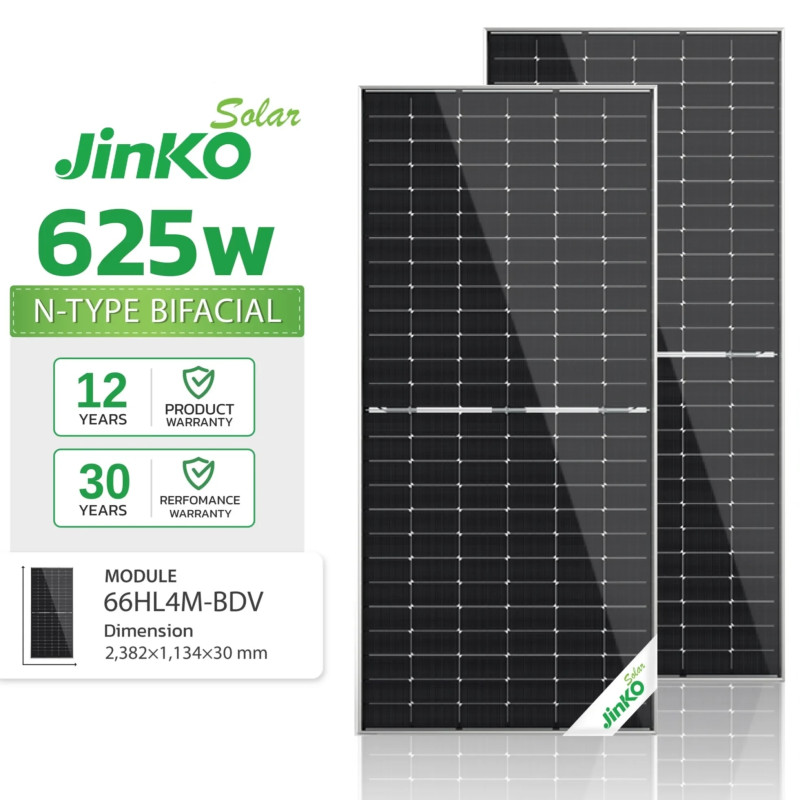

Jinko 625Watt Solar Panel
৳16,500.00
৳14,000.00
For more live images and videos, Contact us now
01996677558The lowest price of Jinko 625Watt Solar Panel. Buy from Dhaka at low price in i Power Bangladesh. Jinko 625Watt Solar Panel Price in Bangladesh.
Authenticity Guaranteed
1-5 Year Warranty
Brand New
7 Days Exchange Policy
Description
Technical Specifications
Below is a detailed breakdown of the Jinko Tiger Neo N-Type TOPCon 625W Bifacial Solar Panel's specifications:
| Attribute | Specification |
|---|---|
| Model Name | Jinko Tiger Neo N-Type 66HL4M-BDV |
| Rated Peak Power (Pmax) | 625 Wp |
| Module Efficiency | 23.14% |
| Cell Type | N-Type Monocrystalline, TOPCon |
| Number of Cells | 132 (6x22) |
| Power Tolerance | 0 ~ +3W |
| Voltage at Pmax (Vmp) | 40.88 V |
| Current at Pmax (Imp) | 15.29 A |
| Open Circuit Voltage (Voc) | 49.28 V |
| Short Circuit Current (Isc) | 16.14 A |
| Max System Voltage | 1500V DC (IEC) |
| Max Series Fuse Rating | 30 A |
| Operating Temperature | -40℃ to +85℃ |
| Temperature Coeff. of Pmax | -0.29 %/°C |
| Temperature Coeff. of Voc | -0.24 %/°C |
| Temperature Coeff. of Isc | +0.048 %/°C |
| NOCT (Nominal Operating Cell Temp.) | 45 ± 2°C |
| Dimensions (L x W x H) | 2384 mm x 1134 mm x 30 mm |
| Weight | 32.3 kg |
| Front Glass | 2.0 mm, heat strengthened glass, anti-reflection coating |
| Rear Glass | 2.0 mm, heat strengthened glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated, 3 Bypass Diodes |
| Output Cables | TUV 1x4.0mm², Length: 400mm (standard) |
| Connector | MC4 Compatible |
| Bifaciality Factor | 80 ± 5% |
| Product Warranty | 12 Years |
| Performance Warranty | 30 Years Linear Power Output (0.40% annual degradation) |
