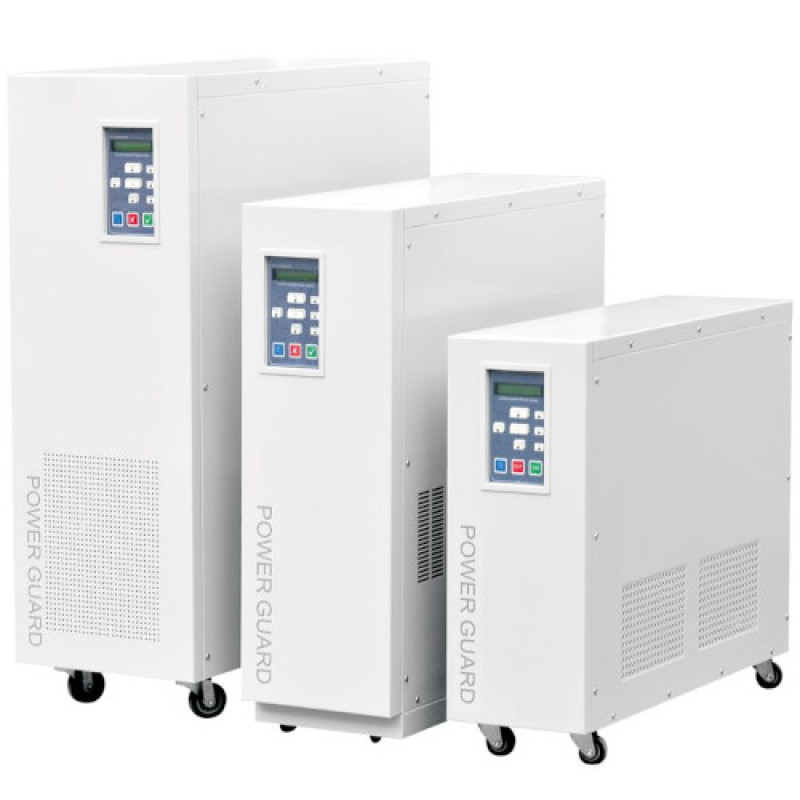

KSTAR 10KVA Online UPS
৳180,000.00
৳150,000.00
For more live images and videos, Contact us now
01779966833The lowest price of KSTAR 10KVA Online UPS in Bangladesh. Buy from Dhaka at low price in i Power Bangladesh. KSTAR 10KVA Online UPS Price in Bangladesh.
Authenticity Guaranteed
1-5 Year Warranty
Brand New
7 Days Exchange Policy
Description
Full Specification
| Item | UPS |
|---|---|
| UPS Type | Online |
| Display | LED |
| Charging Time | 06–08 hours |
| Backup Time | Up to 15-20 Miniute |
- Rated output capacity: 10 kVA
- Rated output Capacity: 8 kW
- Efficiency: 95%
- Input phase: P + N +E
- Output phase: P + N +E
- Operating input voltage: 160-265 VAC
- Operating input voltage: phase + N
- Output voltage: 220 VAC + 1%
- Operating input frequency: 50Hz, + 5%
- Rated output frequency: 50Hz, + 1%
- Input power factor: 0.92
- Output power factor: 0.9
- Thermal harmonic distortion: 2%
- Operating temperature: 0-400C
- Relative humidity: 95% non condensing
- Load transfer time: 0 ms
- Communication port: Rj45
- Country of origin China
- Shipment from China
- Protection
- Overload, short circuit, high-low input/output volt, voltage surge, RF noise, over heat, battery over charge, low battery back-up, synchronization fail
- Noise: 50 dBA at 1 meter
- Buzzer short beep UPS on backup mode
- Buzzer long beep Low Battery
- Battery rack External
- Net weight of UPS unit Provided in UPS Catalog
- Protection degree IP 20
- Synchronization: Yes
- Battery System
- Brand: Kstar
- Country of origin Bangladesh
- Shipment from Bangladesh
- Battery type: Valve regulated SMF
- Battery capacity: (A-Hr) 9AH one set (16 nos)
- Battery cell voltage 12V (6cellx2V)
- Battery system / bank voltage: 192VDC
- Battery operating temperature: 25 degrees C
- Float charge Voltage: 13.5~13.8V(2.25~2.3V/cell)
- Boost charge Voltage: 14.5 ~ 15V (2.33~2.5V/cell)
- 11 Initial limited charging value (C10/C20)
- Initial charging current less than 30A for Cycle
- No limit on initial charging current for standby
- Battery Cycle at 80% DoD
- Charging Curve (V vs A)
- Discharge Curve (V vs A) Provided in Battery Catalog
- End cell voltage: 10.5 V (1.75V X 6cell )
