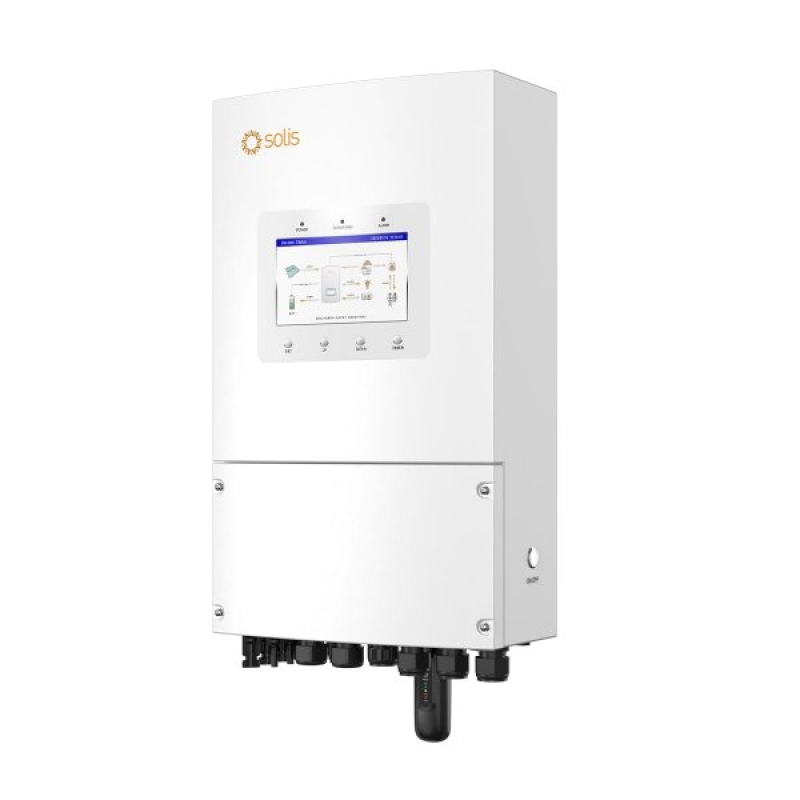

Solis 6KW Hybrid Solar Inverter

Solis S6-EH1P5K-L-PLUS 6kW Single Phase Hybrid Solar Inverter

The Solis S6-EH1P5K-L-PLUS 6kW Hybrid Solar Inverter is a high-performance single-phase inverter designed for residential photovoltaic energy storage systems, offering seamless integration of solar, grid, and battery power for maximum efficiency and energy savings.

This inverter features a maximum charge & discharge current of 112A, UPS-level switching capability for uninterrupted power, and 6-stage charge/discharge settings to optimize energy use and extend battery life. It’s smart energy management lets you store excess solar energy for later use, significantly reducing reliance on the grid.

It also integrates advanced photovoltaic & battery protection functions, ensuring the system is safe, reliable, and battery-friendly.
For larger setups, multiple units can be networked to create single-phase or three-phase systems up to 48kW, with AC coupling support for upgrading existing grid-connected systems.

Compact, reliable, and easy to monitor in real time, the Solis S6-EH1P5K-L-PLUS delivers an efficient and economical green electricity solution for homes and small businesses, making it a perfect choice for solar PV systems in Bangladesh.

Key Functions & Features

• Solis 5kW single-phase hybrid inverter

• Supports solar + grid + battery configurations

• Seamless energy storage integration

• Real-time monitoring & smart energy management

• High efficiency & reliable operation

• Compact design, easy to install

• Ideal for residential & light commercial setups

• Compatible with various battery systems

• User-friendly interface with advanced protections

• Monitoring: Supported

Category	Specification
PV (DC) Input
Recommended Max. PV array size	10 kW
Max. usable PV input power	8 kW
Max. input voltage	500 V
Rated voltage	330 V
Start-up voltage	90 V
MPPT voltage range	90–435 V
Max. input current	16 A / 16 A
Max. short circuit current	20 A / 20 A
MPPT trackers / strings	2 / 2
Battery
Battery type	Li-ion / Lead-acid
Battery voltage range	40–60 V
Max. charge/discharge power	6 kW
Max. charge/discharge current	112 A
Communication	CAN / RS485
AC Output (Grid)
Rated output power	6 kW
Max. apparent output power	6 kVA
Operation phase	L/N/PE
Rated grid voltage	220V / 230V
Rated grid frequency	50Hz / 60Hz
Rated output current	22.8 A / 21.8 A
Max. output current	22.8 A / 21.8 A
Power factor	>0.99 (0.8 lead–0.8 lag)
THDi	<2%
AC Input (Grid)
Input voltage range	187–253 V
Max. input current	32 A
Frequency range	45–55 Hz / 55–65 Hz
AC Output (Backup)
Rated output power	5 kW
Max. apparent output power	2× rated (10s)
Backup switch time	<4 ms
Rated output voltage	220V / 230V
Rated output frequency	50Hz / 60Hz
Rated output current	22.8 A / 21.8 A
Max. AC passthrough current	40 A
THDv (@linear load)	<2%
Efficiency
Max. efficiency	96.2%
European efficiency	96.1%
Battery charged by PV/AC efficiency	95.3% / 93.9%
Battery discharged to AC efficiency	93.8%
General Data
Dimensions (W×H×D)	335 × 560 × 227 mm
Weight	21.6 kg
Ingress protection	IP66
Cooling	Natural convection
