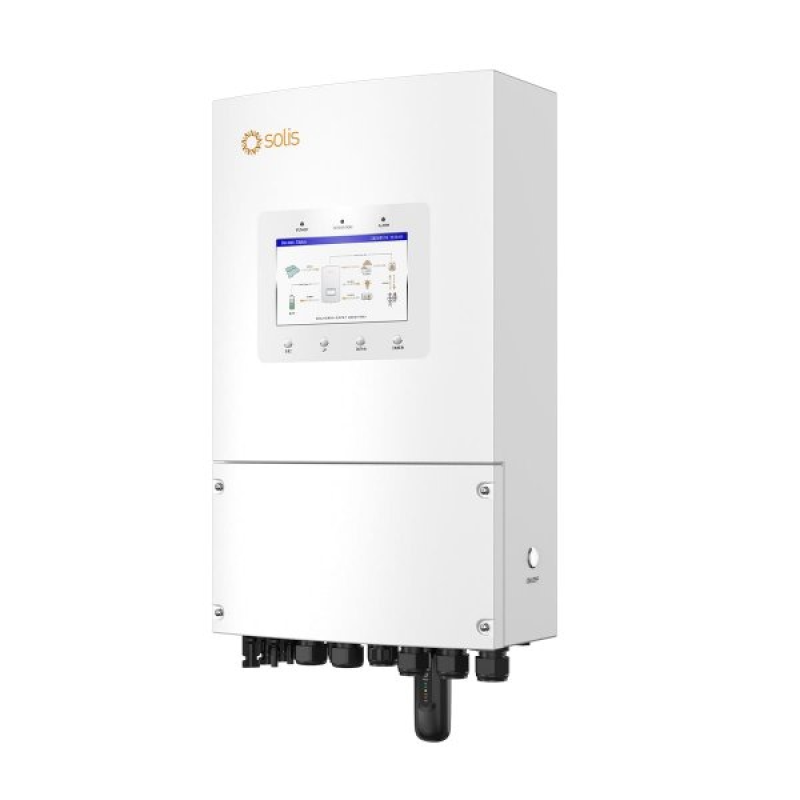

Solis 8KW Hybrid Solar Inverter

Solis 8kW Hybrid Solar Inverter

Model: S6-EH1P-8K-L-PLUS
Brand: Solis (Ginlong Technologies)
Series: SOLARATOR
Phase: Single Phase
System Voltage: 48V (Low Voltage)
Protection Level: IP66

DC Input (PV Side)

·         Recommended max. PV array size: 16 kW

·         Max. usable PV input power: 12.8 kW

·         Max. PV input voltage: 500 V

·         Rated PV voltage: 330 V

·         Start-up voltage: 90 V

·         MPPT voltage range: 90 – 435 V

·         MPPT / Strings: 2 MPPT / 4 Strings

·         Max. input current: 32 A / 32 A

·         Max. short-circuit current: 40 A / 40 A

·         PV oversizing: Up to 160% supported

Battery Specifications

·         Battery type: Lithium-ion / Lead-acid

·         Battery voltage range: 40 – 60 V

·         Max. charge / discharge power: 8 kW

·         Max. charge / discharge current: 190 A

·         Battery communication: CAN / RS485

·         Compatible with any 48V battery system

AC Output (Grid Side)

·         Rated output power: 8 kW

·         Max. apparent power: 8 kVA

·         Rated grid voltage: 220 V / 230 V

·         Rated grid frequency: 50 Hz / 60 Hz

·         Rated output current: 36.4 A / 34.8 A

·         Max. output current: 36.4 A / 34.8 A

·         Power factor: > 0.99 (0.8 leading – 0.8 lagging)

·         THDi: < 3%

AC Input (Grid Side)

·         Input voltage range: 187 – 253 V

·         Max. input current: 50 A

·         Frequency range: 45–55 Hz / 55–65 Hz

AC Output (Backup / EPS Mode)

·         Rated backup power: 8 kW

·         Overload capability: 200% of rated power for 10 seconds

·         Transfer time: < 10 ms

·         Rated output voltage: L / N / PE, 220 V / 230 V

·         Rated frequency: 50 Hz / 60 Hz

·         THDv (@ linear load): < 2%

·         Max. AC passthrough current: 50 A

Generator Input

·         Max. generator input power: 8 kW

·         Max. input current: 36.4 A / 34.8 A

·         Rated frequency: 50 Hz / 60 Hz

·         Auto generator control: Supported

Efficiency

·         Max. efficiency: 96.2%

·         EU efficiency: 96.1%

·         Battery charged by PV (max): 95.3%

·         Battery discharged to AC (max): 93.8%

Protection & Safety

·         Anti-islanding protection

·         Ground fault monitoring

·         DC reverse-polarity protection

·         Integrated AFCI 2.0: Optional

·         Protection class:

o    I / II (PV & Battery)

o    III (Grid, Backup & Generator)

General Data

·         Dimensions (W × H × D): 335 × 560 × 253 mm

·         Weight: 23.8 kg

·         Topology: High-frequency isolation (battery side)

·         Operating temperature: -25°C to +60°C

·         Relative humidity: 0 – 100%

·         Noise level: < 65 dB(A)

·         Cooling: Natural cooling + intelligent fan

·         Max. altitude: 3000 m

·         Parallel operation: Up to 6 units

Display & Communication

·         Display: 7-inch industrial-grade LCD touchscreen

·         Communication: RS485, CAN

·         Optional: Wi-Fi, GPRS, LAN

·         Smart monitoring: SolisCloud (AI optimisation & remote control)
